An integration must be configured and linked to the project to start collecting data for your pull requests, PBI and deployments. However, you only need to add the integration once to connect it to multiple projects, allowing you to evaluate different teams.
Available integrations
If you wish to configure Azure DevOps with OAuth or through a service account, please refer to this article.
To set up an Azure DevOps integration
- Select the project for which you want to start collecting data.
Psst! If you haven't added your project yet, do that first!
- Click on Settings to access its Project Settings. Select the Integrations tab.
- Scroll down to Source Control Management section. Click on Add Integration.
-

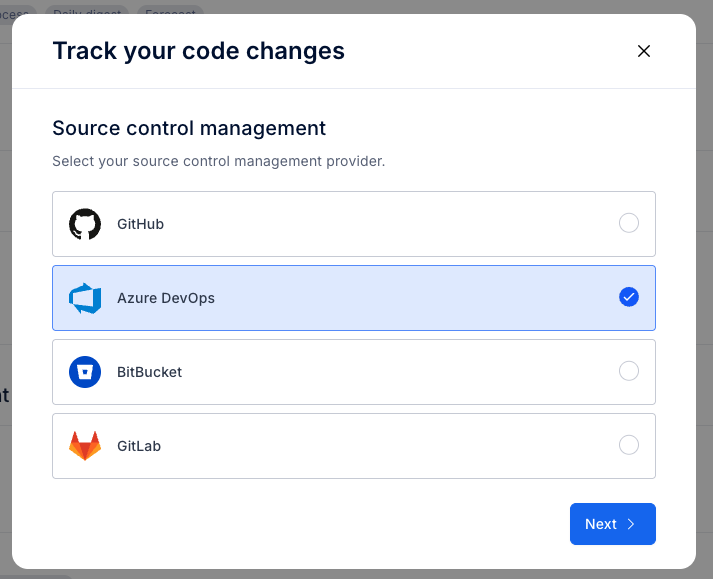

Select the Azure DevOps option, then click Next.
- Click on Add an Integration
- You can authenticate with a personal access token or with OAuth. If your repositories are on-premise (self-hosted on a private network), we suggest to use the personal access token.
- A window will open. Enter your Azure DevOps login information.
- The Name of your integration helps you recognize this integration later on. This name will not be displayed anywhere other than the Settings page.
- The Name of your Azure DevOps organization must be the same as the one specified in Azure DevOps itself.
-
The Personal Access Token must be generated beforehand directly in the Azure DevOps settings. You can refer to this official Microsoft help article for more information on this topic. Just make sure you allow read access to the «Analytics», «Work items», "Project and Teams" and "Code" options, which are required to synchronize data to Axify.
To do this:
-
Go to Azure DevOps
-
Go to user settings (silhouette icon in the upper right corner)
-
Select the Personal access tokens option at the bottom of the list
-
Click on + New Token.
Psst! It is not possible to display an existing PAT. Therefore, if you have private internal documentation where the PAT can be stored, it may be good to keep it as a note there. Also, since the PAT has an expiration date, it is advisable to select the longest period possible (i.e., one year) and schedule a reminder to update it (in your or the team's calendar). At the time of the update, you will simply need to unlink the existing integration, generate a new PAT in Azure DevOps and re-link the integration. Don't worry; the data synchronization is retroactive, meaning that data synchronized in the past is still accessible in Axify.
-
- Add the generated PAT in the Personal access token field.
-
(Optional) If you have an on-premise instance, Axify will need an accessible public URL to reach your private network (for example through a reverse proxy). In that case, you can enter the proxy URL in the Azure DevOps instance proxy URL.
- You can optionally add additional headers as well. A typical use-case would be to enter an X-AXIFY-ID with a specific value so your network know it is us and not someone else. When we will fetch requests, Axify will send these additional headers to each requests.
-
Once the fields are completed, click on Add Azure DevOps Integration.
That's it! Your Azure DevOps integration is set up and ready to be linked to your project to start collecting data!
Psst! Depending on the volume of data, the synchronization of the Technical Axis can take several minutes or even several hours in the most extreme cases.
